Using the StreamsLookup error handler

The Chainlink Automation StreamsLookup error handler provides insight into potential errors or edge cases in StreamsLookup upkeeps. The table below outlines a range of error codes and the behavior associated with the codes. Use the checkErrorHandler function to specify how you want to respond to the error codes. checkErrorHandler is simulated offchain and determines what action for Automation to take onchain in performUpkeep.

Error handler

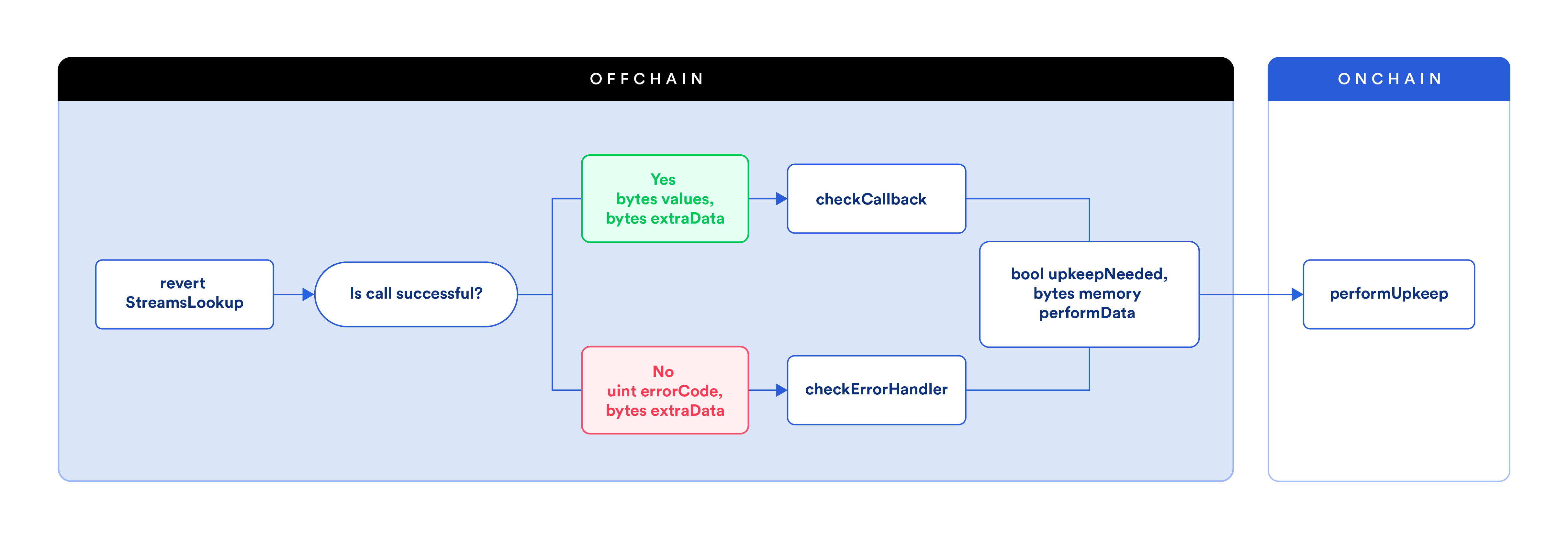

When Automation detects an event, it runs the checkLog function, which includes a StreamsLookup revert custom error. The StreamsLookup revert enables your upkeep to fetch a report from Data Streams. If reports are fetched successfully, the checkCallback function is evaluated offchain. Otherwise, the checkErrorHandler function is evaluated offchain to determine what Automation should do next. Both of these functions have the same output types (bool upkeepNeeded, bytes memory performData), which Automation uses to run performUpkeep onchain. The example code also shows each function outlined in the diagram below:

If the Automation network fails to get the requested reports, an error code is sent to the checkErrorHandler function in your contract. If your contract doesn't have the checkErrorHandler function, nothing will happen. If your contract has the checkErrorHandler function, it is evaluated offchain to determine what to do next. For example, you could intercept or ignore certain errors and decide not to run performUpkeep in those cases, in order to save time and gas. For other errors, you can execute an alternative path within performUpkeep, and the upkeep runs the custom logic you define in your performUpkeep function to handle those errors.

1. Add the checkErrorHandler function in your contract to specify how you want to handle error codes. For example, you could decide to ignore any codes related to bad requests or incorrect input, without running performUpkeep onchain:

function checkErrorHandler(
  uint errorCode,
  bytes calldata extraData
) external returns (bool upkeepNeeded, bytes memory performData) {
  // Add custom logic to handle errors offchain here
  bool _upkeepNeeded = true;
  bool success = false;
  bool isError = true;
  if (errorCode == 800400) {
    // Handle bad request error code offchain
    _upkeepNeeded = false;
  } else {
    // logic to handle other errors
  }
  return (_upkeepNeeded, abi.encode(isError, abi.encode(errorCode, extraData, success)));
}

1. Define custom logic for the alternative path within performUpkeep, to handle any error codes you did not intercept offchain in checkErrorHandler:

// function will be performed on-chain
function performUpkeep(bytes calldata performData) external {
  // Decode incoming performData
  (bool isError, bytes payload) = abi.decode(performData)

  // Unpacking the errorCode from checkErrorHandler
  if (isError){
    (uint errorCode, bytes memory extraData, bool reportSuccess) = abi.decode(
    payload,
    (uint, bytes, bool)

    // Define custom logic here to handle error codes onchain
  );
  } else {
    // Otherwise unpacking info from checkCallback
    (bytes[] memory signedReports, bytes memory extraData, bool reportSuccess) = abi.decode(
      payload,
      (bytes[], bytes, bool)
    );
    if (reportSuccess) {
    bytes memory report = signedReports[0];

    (, bytes memory reportData) = abi.decode(report, (bytes32[3], bytes));

    // Logic to verify and decode report
    } else {
      // Logic in case reports were not pulled successfully
    }
  }
}

Testing checkErrorHandler

checkErrorHandler is simulated offchain. When upkeepNeeded returns true, Automation runs performUpkeep onchain using the performData from checkErrorHandler. If the checkErrorHandler function itself reverts, performUpkeep does not run.

If you need to force errors in StreamsLookup while testing, you can try the following methods:

• Specifying an incorrect feedID to force error code 800400 (ErrCodeStreamsBadRequest)
• Specifying a future timestamp to force error code 808206 (where partial content is received) for both single feedID and bulk feedID requests
• Specifying old timestamps for reports not available anymore yields either error code 808504 (no response) or 808600 (bad response), depending on which service calls the timeout request

If your StreamsLookup revert function is defined incorrectly in your smart contracts, the nodes will not be able to decode it.

Error codes

Example code

This example code highlights the revert StreamsLookup, checkCallback, checkErrorHandler and performUpkeep functions. The full code example is available here.

...
function checkLog(Log calldata log, bytes memory)
    external
    returns (bool upkeepNeeded, bytes memory performData)
{
    revert StreamsLookup(
        STRING_DATASTREAMS_FEEDLABEL,
        feedIds,
        STRING_DATASTREAMS_QUERYLABEL,
        log.timestamp,
        ""
    );
}

function checkCallback(bytes[] calldata values, bytes calldata extraData)
    external
    pure
    returns (bool, bytes memory)
{
    bool success = true;
    return (true, abi.encode(values, extraData, success));
}

function checkErrorHandler(
    bytes calldata errorCode,
    bytes calldata extraData
) public view returns (bool upkeepNeeded, bytes memory performData) {
    bool success = false;
    return (true, abi.encode(errorCode, extraData, success));
}

// function will be performed on-chain
function performUpkeep(bytes calldata performData) external {
    // Decode incoming performData
    (bool isError, bytes payload) = abi.decode(performData)

    // Unpacking the errorCode from checkErrorHandler
    if (isError){
      (uint errorCode, bytes memory extraData, bool reportSuccess) = abi.decode(
      payload,
      (uint, bytes, bool)
    );
    } else {
      // Otherwise unpacking info from checkCallback
      (bytes[] memory signedReports, bytes memory extraData, bool reportSuccess) = abi.decode(
        payload,
        (bytes[], bytes, bool)
      );
    }

    if (reportSuccess) {
            bytes memory report = signedReports[0];

            (, bytes memory reportData) = abi.decode(
                report,
                (bytes32[3], bytes)
            );

            // Logic to verify and decode report
        } else {
            // Custom logic to handle error codes
        }
}
